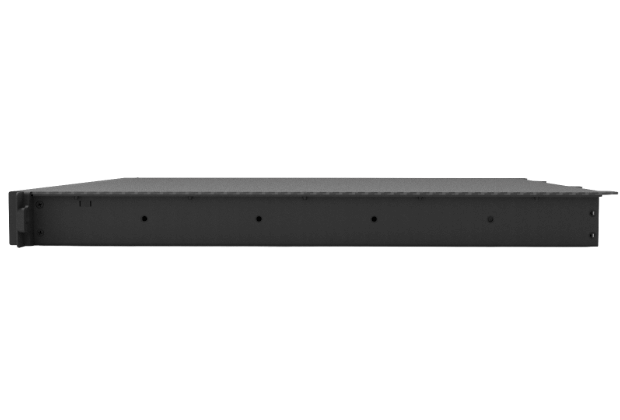

ZX1C 20 Lightweight 1U Server

Every aspect of the ZX1C 20 lightweight 1U server is designed to reduce weight by incorporating carbon fiber materials, a modified 750W DC power supply and lightweight support brackets; all while supporting the latest COTS computing technologies guaranteed to meet your intensive processing requirements in the most stringent environments.

Product Highlights
Product Features
Mil-Spec Testing
Tech Specs
Data Sheet

Product Highlights

picture of plane wing in sky with do-160 certified disclaimer overlay for airborne products

Ideal for Airborne Applications

The ZX1C 20 provides all the processing and storage capability of a high-end server in a lightweight package that meets full DO-160 compliance making it ideal for airborne applications.

Carbon fiber elements are used to reduce weight in the airborne server

Weight Savings Where It Counts

At only 13 lbs., the ZX1C 20 server is engineered with carbon fiber elements to reduce weight resulting in a rugged server that’s stronger than ever before, yet almost 10lbs lighter than its predecessor.

Tranzpak1-TP1-Rugged-Data-Storage-Removable

Easy to Remove Storage Drives

Support for up to 4 removable TranzPak 1 storage drives (8TB each), allowing for frequent insertion and removal of data ensuring sensitive information is always kept safe. Maximum of 3 TranzPak 1 drives.

Features

Design

1U rack height (1.72”)

Configurations starting at 13 lbs.

3 axis hold-downs for PCIe cards for shock and vibration compliance

19″ RETMA rack-mountable

Thermal channels for proper cooling of high performance COTS

Lightweight, carbon fiber and aluminum enclosure

Field-replaceable dust filter

2 x front access USB 3.0 ports

Performance

Up to two Intel® Xeon® scalable processors

Dual socket, up to 3.7ghz 24 core Xeon® processors

Up to 2TB DDR4 2666MHz Registered ECC Memory

Support for up to 3 PCIe Add-On Slots

Raid configurable data storage

Up to 24TB of removable TRANZPAK 1 based storage

Options

Conformal coating

High performance GPU options

Locking security door option

ROHS compliant option

Positive locking power connector

750W DC

EMI power filter

Tech Specs

Size, Weight & Power
- Size: 1.7″H x 17.00″W x 20.00″D (inside rack)
- Weight: 13-15 lbs. (Depending on configuration)
- DC Power Supply: 750W Max, Fixed
- DC Input Range: 18-36VDC @ 46 to 26A (Inrush current 100A @ 24VDC @ 25°C)
Tech Options
- Motherboard: Latest Intel® and Supermicro® motherboards
- Processor: Latest Intel® Xeon® scalable processors
- Memory: Up to 2TB DDR4 2666MHz Registered ECC Memory – 2TB for Intel S2600STB and
  1.5TB for Super Micro X11SPW-TF
- Storage: Up to 4 TP1 rugged storage modules (Standard 2.5” drives – up to 8TB each SSD/HDD)
- Graphics: Latest NVIDIA® & ATI™ graphics video cards
- PCI Add-On Slots: 1 PCIe slot for Intel® motherboard, 3 PCIe slots for Supermicro® motherboard
Environmental & Quality
- Operating Temp High: 50°C, MIL-STD-810G, Method 501.5, Procedure I
- Operating Temp Low: 0°C, MIL-STD-810G, Method 502.5, Procedure I
- Non-Operating Temp High: 70°C, MIL-STD-810G, Method 501.5, Procedure II
- Non-Operating Temp Low: -40°C, MIL-STD-810G, Method 502.5, Procedure II
- Operating Altitude: Up to 20,000 ft., MIL-STD-810G, Method 500.5
- Non-Operating Altitude: Up to 40,000 ft., MIL-STD-810G, Method 500.5
- Humidity: DO-160F, Section 4, Category A, 50°C and 95% RH
- Shock: MIL-STD-810G, Method 516.6, 30 g’s, Saw-tooth, 11ms
- Vibration: DO-160E, Section 8, Curve B (Aircraft Type 2)
- EMI/EMC: MIL-STD-461F, RE102 (Shipboard Level 1), RS101 (Army Limits), CE102, CS101
- Quality: AS9100:2016 and ISO 9001:2015 certified
Contact a sales representative for environmental reports.

MIL-SPEC TESTED & APPROVED

The ZX1C 20 lightweight server meets full MIL-SPEC compliance for shock, vibration, temperature, EMI/EMC, and altitude specifications. MIL-SPEC Design and Certifications:

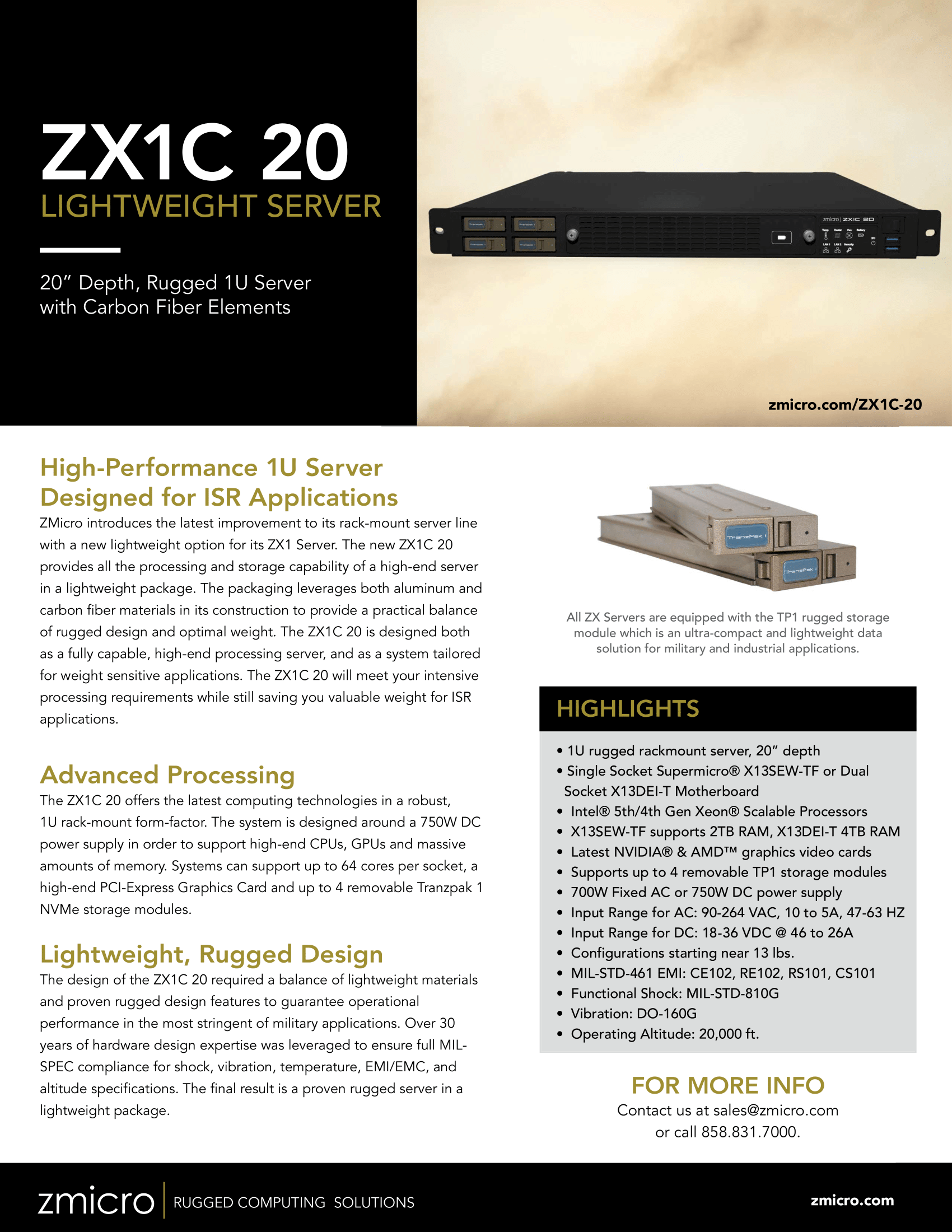

DATA SHEET

Download for features, tech specs, and mechanical drawings to see if the ZX1C 20 Lightweight, Rugged Server is the right fit for your program.

DOWNLOAD

WARRANTY

All ZMicro products feature a 3 Year Standard Warranty, with options for extended and onsite warranties giving you added protection.
