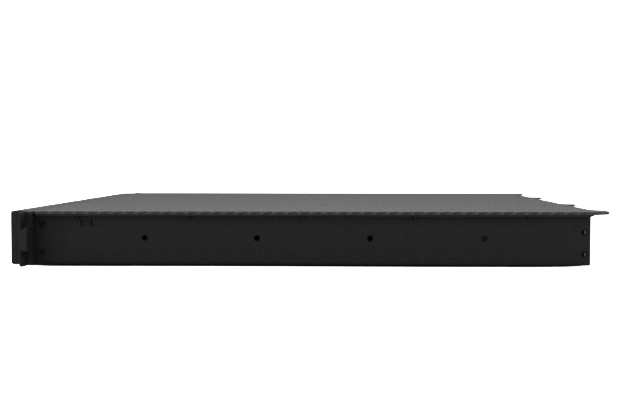

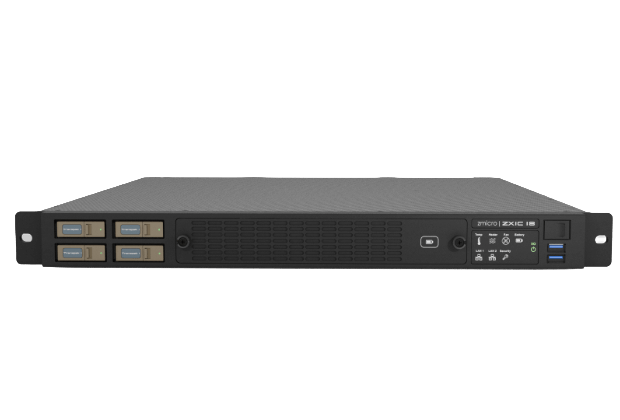

ZX1C 18 Airborne Server

Every aspect of the ZX1C 18 airborne server is designed to reduce weight by incorporating carbon fiber materials, a custom 750W DC power supply, and lightweight support brackets; all while supporting the latest 4th/5th GEN Intel® Xeon® Scalable processors. The lightweight design and advanced processing power provide the industry’s most capable rugged airborne computer.

Product Highlights
Product Features
Mil-Spec Testing
Tech Specs
Data Sheet

Product Highlights

AIRBORNE VIRTUALIZATION SERVER

Using the latest Intel® 3rd Generation Xeon® Scalable processors, the ZX1C 18 can support a higher memory footprint and faster GPGPU capabilities to support virtualization of computers and bring Artificial Intelligence and Machine learning applications to airborne environments.

picture of plane wing in sky with do-160 certified disclaimer overlay for airborne products

RUGGED & READY TO FLY

Weighing under 13 lbs., the ZX1C 18 airborne server is engineered with carbon fiber elements to reduce weight and meets full DO-160 compliance for airborne environments.

A hand removing a TranzPak 1 rugged storage drive from the ZX1C airborne server

Easy to Remove, NVMe Storage Drives

Protect all of your data with the palm-sized TranzPak 1 removable storage modules which use M.2 NVMe SSDs and are 4x faster than SATA-3 solutions.

ZX1C 18 Features

Design

1U rack height (1.72”)

Configurations starting at 12.5 lbs.

3 axis hold-downs for PCIe cards for shock and vibration compliance

19″ RETMA rack-mountable

Thermal channels for proper cooling of high performance COTS

Lightweight, carbon fiber and aluminum enclosure

Field-replaceable dust filter

2 x front access USB 3.0 ports

Front accessible CMOS battery

Performance

3rd Gen Intel® Xeon® Scalable processors

Single Socket Motherboard (Supermicro X12SPW-TF)

Up to 2TB DDR4 3200MHz Registered ECC Memory

Support for up to 3 PCIe expansion cards

NVMe SSD Storage utilizing TranzPak 1 modules

Up to 32TB of removable TranzPak 1 based storage (7.86 each)

Options

Nanocoating

High performance GPU options

ROHS compliant option

MIL-Round power connector

750W DC Power Supply

EMI power filter

Tech Specs

Size, Weight & Power
- Size: 1.7″H x 17.00″W x 17.8″D
- Weight: Starting at 12.5 lbs. (Depending on configuration)
- DC Power Supply: 750W Max
- DC Input Range: 18-36V DC @ 29 to 14A (Inrush current 19A @ 28V DC @ 25°C)
Tech Options
- Motherboard: Latest Supermicro® motherboards
- Processor: 3rd Gen Intel® Xeon® Scalable processors
- Memory: Up to 2TB DDR4 3200MHz Registered ECC Memory
- Storage: Up to 4 TranzPak 1 rugged storage modules (7.86TB each)
- Graphics: Latest NVIDIA® & ATI™ graphics video cards
- PCI Add-On Slots: Support for up to 3 PCIe expansion cards
Environmental & Quality
- Operating Temp High: 70°C, DO-160G, Sect. 4.5.4, Cat. A2
- Operating Temp Low: -15°C, DO-160G, Sect. 4.5.2, Cat. A2
- Ground Survival High (Non-Op): 85°C, DO-160G, Sect. 4.5.3, Cat. A2
- Ground Survival Low (Non-Op): -55°C, DO-160G, Sect. 4.5.1, Cat. A2
- Humidity: DO-160G, Sect. 6.3.2, Cat. B, 38°C @ 85% RH Cyclical
- Shock: DO-160G; Sect. 7.2.1, Cat. B
- Crash Safety (Impulse): DO-160G; Sect. 7.3.1, Cat. B
- Crash Safety (Sustained): DO-160G; Sect. 7.3.3, Cat. B, Type 4
- Vibration: DO-160G; Sect. 8.0, Cat S, Curve L
- Magnetic Effect: DO-160G; Sect. 15, Cat A
- Power Input: DO-160G; Sect. 16, Cat B
- Voltage Spike: DO-160G; Sect. 17, Cat A
- Audio Frequency: DO-160G; Sect. 18, Cat B
- Induced Signal Susceptibility: DO-160G; Sect. 19, Cat ZC
- RF Susceptibility: DO-160G; Sect. 20, Cat T
- Emission of Radio Freq. Energy: DO-160G; Sect. 21, Cat M
- ESD: DO-160G; Sect. 25, Cat A
- Dust Proof: DO-160G; Sect. 12, Cat D
- Flammability: DO-160G; Sect. 26, Cat C
- Quality: AS9100:2016 and ISO 9001:2015 certified
Contact a sales representative for environmental reports.

MIL-SPEC TESTED & APPROVED

The ZX1C 18 Airborne Server meets full MIL-SPEC compliance for shock, vibration, temperature, EMI/EMC, and altitude specifications. MIL-SPEC Design and Certifications:

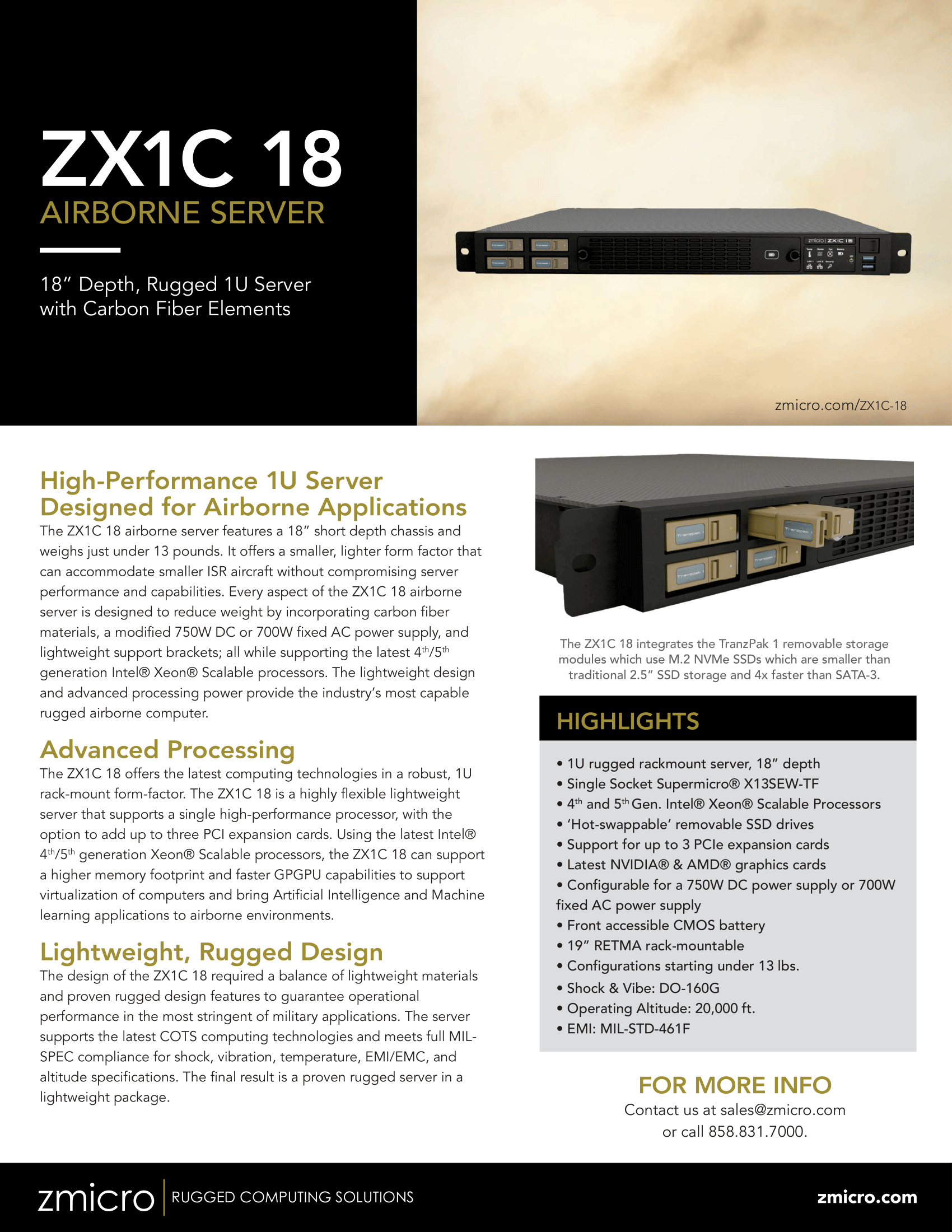

DATA SHEET

Download for features, tech specs, and mechanical drawings to see if the ZX1C 18 Airborne Server is the right fit for your program.

DOWNLOAD

WARRANTY

All ZMicro products feature a 3 Year Standard Warranty, with options for extended and onsite warranties giving you added protection.
